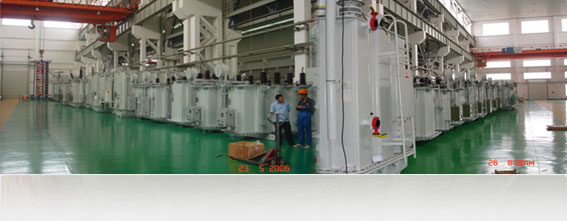

Power Transformers :



Features :
  • Excellence withstand short-circuit capacity
  • Low no- load-losses and load-losses
  • Low partial discharge
  • Low noise
  • Enhanced life expectancy


Technical Specification :
  • Standard : IEC 60076
  • Voltage level : 33,66,110,138,220,400,& 550kv
  • Mode of voltage regulator off circuit / on load
  • Power Capacity : upto 460 MVA
  • Frequency : 50 Hz
  • Phase : 1ph, 3ph
  • Vector group : Dyn11, YND1, YND11, YNYN0 etc...
  • Type of cooling : ONAN / ONAF / OFAF / ODAF etc...
  • Insulation level : As per IEC
  • Termination : open Bushing / Cable box / Busduct.
